How Commercial Fire Sprinklers Work

Still, many property owners don’t fully understand how these systems function. What triggers them? How is water stored or released? Will all the sprinklers go off at once?

In this article, we’ll break down exactly how fire sprinklers work, using easy-to-understand terms. You’ll walk away with more confidence in your building’s fire protection—and a clear picture of why proactive maintenance and expert installation matter.

What Is a Commercial Fire Sprinkler System?

A commercial fire sprinkler system is more than just a few pipes and nozzles mounted on the ceiling. It’s a fully engineered, automatic safety mechanism designed to detect fire and stop it in its tracks—often before first responders even arrive.

These systems are built to activate within seconds of extreme heat, delivering a targeted water spray to suppress or extinguish flames at the source. Unlike fire extinguishers, which require someone to be present, sprinklers operate independently. They don’t wait for someone to respond. They are your first responders.

A standard system consists of:

A pressurized network of water-filled (or air-filled) pipes
Sprinkler heads placed at strategic intervals across the ceiling
Control valves and flow alarms that monitor and regulate activity
A water supply, either from the city or a dedicated tank onsite

Some systems are designed to operate in freezing environments using air pressure, while others are simple wet-pipe setups for standard building conditions. The system design is customized based on building layout, occupancy type, and risk exposure.

In short: it’s one of the most critical—and most overlooked—life safety systems in your building.

How Do Fire Sprinklers Work? Breaking Down the Mechanics

Each sprinkler head is essentially a heat-activated safety valve, engineered for precision. And no, they don’t all go off at once. Let’s walk through what really happens when a fire triggers your commercial fire sprinkler system.

Step 1: Heat Reaches the Sprinkler Head

Each head contains a small glass bulb filled with a colored glycerin-based liquid. These bulbs are temperature-rated—most commonly at 155°F, though you’ll find ratings from 135°F to 286°F depending on the location and potential heat exposure.

When a fire breaks out, rising heat causes the liquid to expand. Once the surrounding air hits the bulb’s designated threshold, the pressure causes the bulb to shatter. That’s the signal: open the valve, release the water.

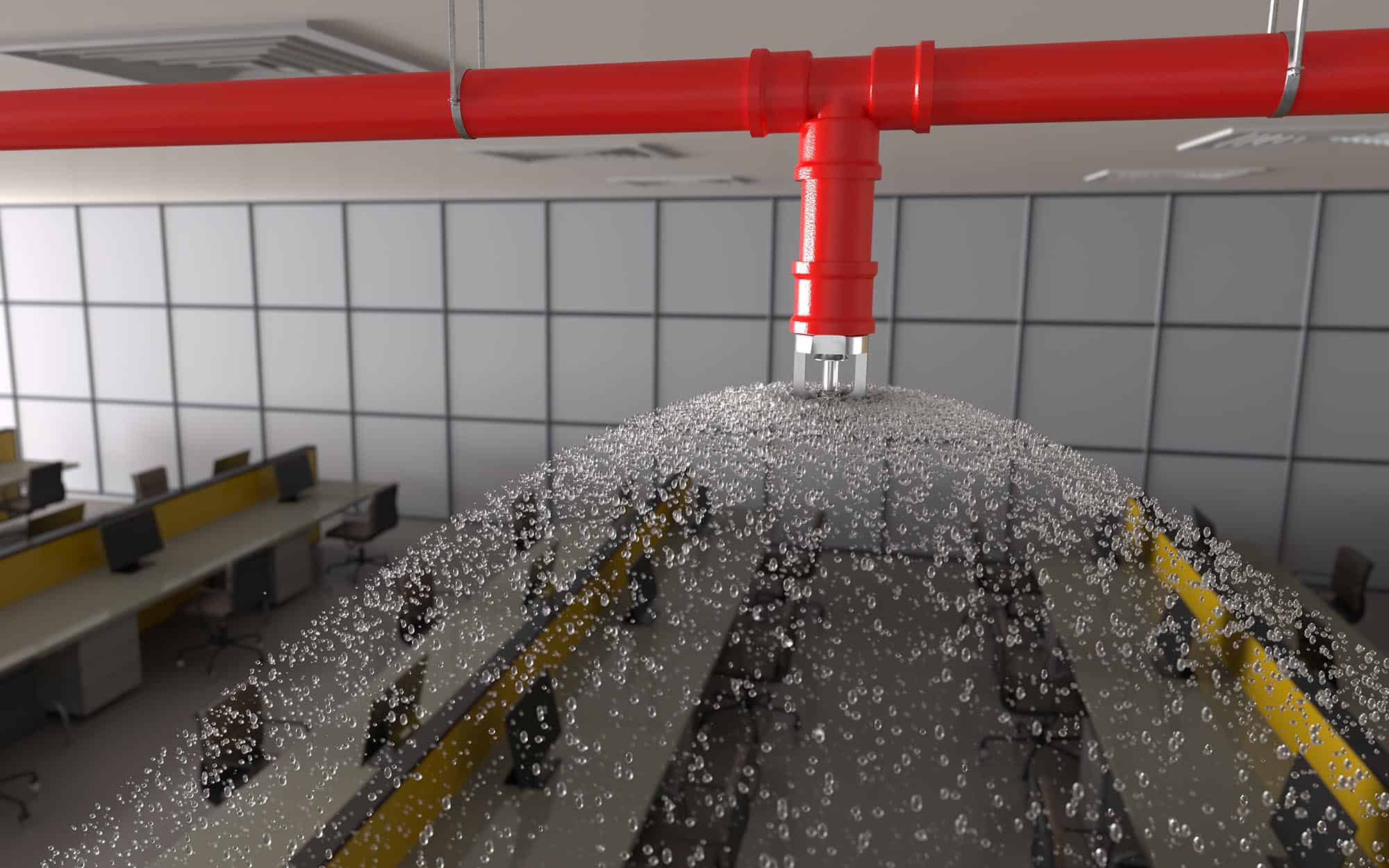

Step 2: Water (or Air, Then Water) Flows Into the Room

Now that the head is open, the system releases water—or, in some cases, air first, then water—directly onto the fire. In a wet pipe system, water is ready and waiting in the pipes, rushing out immediately. In dry pipe systems, pressurized air holds the line until the bulb breaks. Once the pressure drops, a valve opens and water floods in.

Pre-action systems take it a step further. These setups, common in data centers and museums, require an additional signal, like smoke detection, before water enters the pipe network. This dual-trigger mechanism minimizes false discharges in high-value areas.

Deluge systems are designed for fast, widespread action. All heads are open, and water is released simultaneously to suppress fires in high-risk industrial settings.

Step 3: The Fire Is Controlled or Extinguished

The released water absorbs heat, slows the fire’s growth, and limits oxygen supply—all key to knocking down flames fast. Most fires are controlled with just one or two sprinkler heads. The idea that “they all go off” is one of the most common myths in fire protection—and it’s flat-out false.

Understanding this sequence helps building owners recognize the power and precision of a well-maintained sprinkler system and just how vital it is to keep it in working order.

Types of Commercial Fire Sprinkler Systems

Not all sprinkler systems are built the same, and choosing the right one depends on your building’s layout, purpose, and risk profile. Each system type is engineered to serve a specific kind of environment, and understanding those distinctions helps you make smarter decisions about fire protection and code compliance.

Wet Pipe Systems

Wet pipe systems are the most widely used option in commercial buildings. They have pipes that are constantly filled with water, allowing for the fastest possible response when a sprinkler head activates. These systems are known for their reliability and low maintenance needs, making them ideal for office buildings, retail spaces, and multi-family housing.

Dry Pipe Systems

Designed for areas at risk of freezing, such as parking garages, loading docks, and unheated warehouses. In these systems, the pipes are filled with pressurized air or nitrogen. When a head activates, the pressure drops, a valve opens, and water flows in. While the response is slightly slower than wet systems, they’re crucial for cold-weather environments.

Pre-Action Systems

Used in places where accidental water discharge could cause significant damage—think data centers, libraries, or museums. These systems remain dry until triggered by a smoke or heat detector. Once verified, the system fills with water and activates only if the sprinkler head breaks. This two-step process adds extra safeguards and is often paired with other alarm and suppression technology.

Deluge Systems

For high-hazard environments like chemical plants, power generation facilities, or aircraft hangars. Deluge systems have all sprinkler heads open and are activated by a separate detection system. When triggered, water floods the area through every head at once, ensuring immediate and full coverage where fire can spread rapidly.

Each of these systems plays a critical role in commercial fire sprinkler strategy. The right choice depends on your building’s risk level, temperature control, asset value, and fire suppression goals.

Your building may already have a sprinkler system, but do you know what kind, or if it’s working as intended? Harring Fire Protection can walk you through your current layout, test your system, and recommend any improvements or maintenance needed.

Explore Our Services

FAQs About Commercial Fire Sprinkler Systems

Do all sprinklers go off when there’s a fire?

No—this is one of the biggest fire sprinkler myths out there. Only the sprinkler heads exposed to enough heat (typically 155°F or more) will activate. Most fires are contained by just one or two heads. The rest of the system stays closed and on standby.

What triggers a fire sprinkler?

It’s not smoke—it’s heat. When the air around a sprinkler head reaches its designated temperature threshold, the glass bulb inside shatters and allows water to flow. Each head is an independent responder, engineered to act only when conditions demand it.

What temperature do they activate?

Most commercial fire sprinkler heads activate at 155°F, but systems are designed with a range of activation temperatures from 135°F to 286°F. Heads in areas like boiler rooms or near ceilings with high ambient heat are rated higher to avoid accidental discharge.

How often should my system be inspected?

According to NFPA 25, your sprinkler system should undergo monthly, quarterly, and annual inspections, depending on the component. For example:

Gauges: Monthly
Valve function: Quarterly
Full system and flow testing: Annually

A certified provider like Harring Fire Protection will create a custom inspection schedule, document everything properly, and ensure you’re always in compliance.

Ready to Put Your System Knowledge to Work?

A properly installed and maintained commercial fire sprinkler system is one of the most reliable forms of fire protection available today. But understanding how it functions? That’s what gives you confidence to make smart decisions for your property.

Harring Fire Protection is highly experienced in fire sprinkler installation. We’re educators and partners. We’ll help you:

Identify the type of system you have
Maintain it to NFPA 25 standards
Upgrade outdated components
Train your team on what to expect in an emergency

Whether you’re managing a new building, updating an older system, or just want peace of mind, we’re here to help.
